Sharpen your diagnostic ability with RVG in dentistry; enhance your diagnostic capabilities with advanced technologies. RVG stands for Radio VisioGraphy and this technology is used as an alternative to X-ray radiography in dentistry. While 90% of the treatments are blind procedures, RVG in dentistry ensures high-quality dental treatment for your patients.
RVG in Dental Procedures

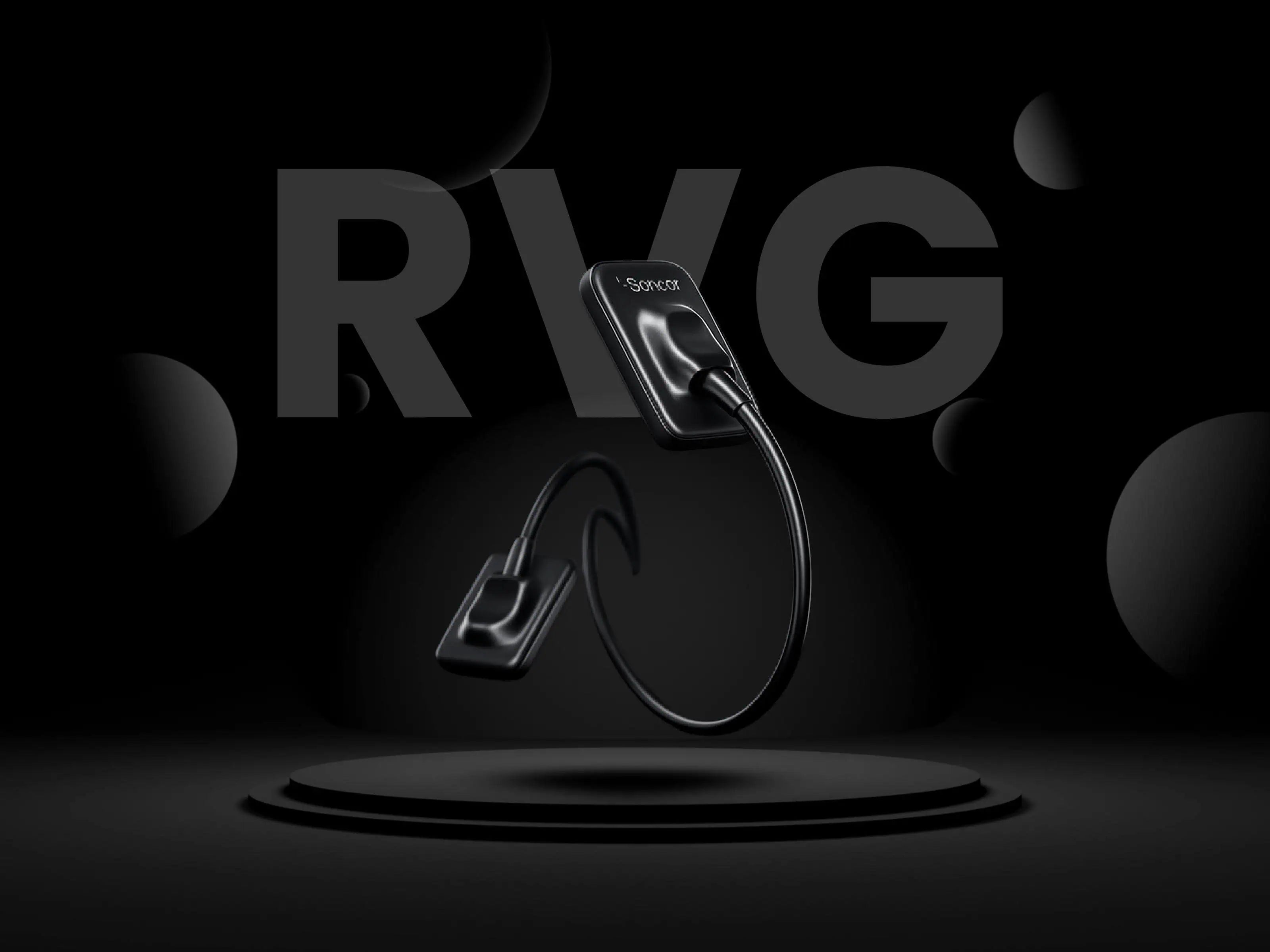

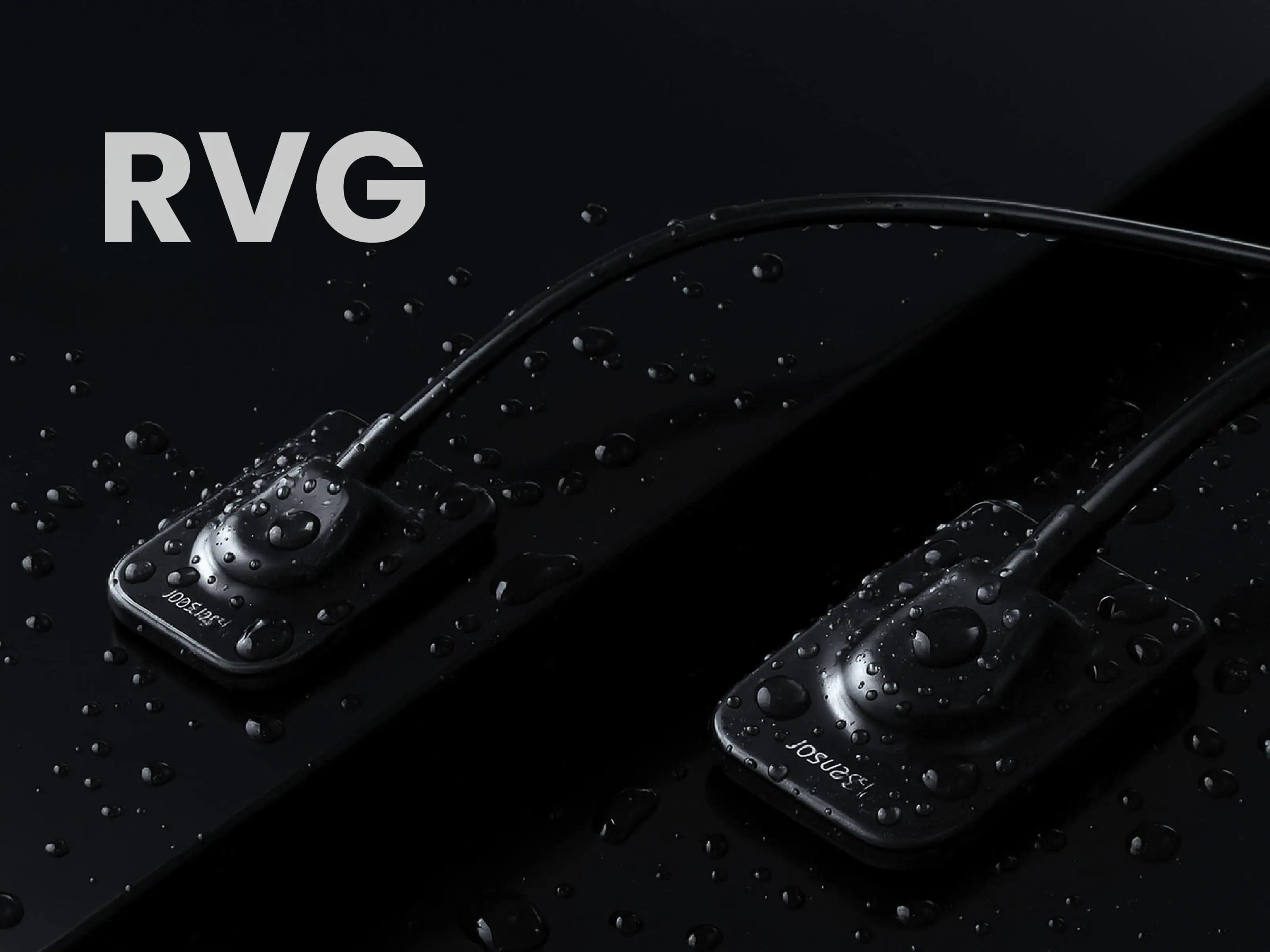

RVG sensors are known for excellent image quality and durability. They come with a hermetically sealed, waterproof housing that supports multiple dental applications. A shock protection layer safeguards the sensor from accidental drops or bites. The combination of fiber optics, high-sensitivity scintillator, and rugged CMOS detector makes these sensors capable of producing high-resolution images.
How to Use RVG in Dentistry?
1. Identify the Sensor Sides
- The RVG sensor has two sides.
- Reactive side: captures the image.
- Non-reactive side: has the cable attachment.
- Always ensure the X-ray is aimed at the reactive side. No image will be captured if it hits the non-reactive side.
2. Position the Sensor Correctly
-
Place the reactive side of the sensor inside the patient’s mouth, facing the X-ray source.
-
The cable, which is on the non-reactive side, should be outside and connected to the USB port.
3. Adjust the X-Ray Generator
-
Set the X-ray generator between 60 kV and 70 kV.
-
RVG sensors do not work with generators below 60 kV.
4. Take the X-Ray Image
-
When the X-ray is turned on, tissue radiation passes through the area. The refracted light is then captured by the RVG sensor.
5. Digital Image Processing
-
The sensor converts the light into digital signals using analog-to-digital converters (ADC).
-
The image is processed in real time and instantly appears on the connected computer screen.
6. Review and Adjust Image Quality
-
If the image appears too dark, reduce the exposure time.
-
If the image is too grainy, increase the exposure and/or time.
-
Remember, image quality may also vary based on the model of the X-ray generator.
Also, Read: All About Band Material in Orthodontics
Why Do You Need an RVG in Dentistry?
1. Minimized Radiation
RVG reduces radiation exposure, making it a safer option for patients.
2. Quick Results
RVG helps speed up diagnosis, saving time for both patients and dentists.
3. High-Quality Grey Scale
Digital radiographs offer improved grey-scale resolution, making it easier to identify soft tissue and bone changes.
4. Post-Processing Capability
You can edit images (e.g., brightness, contrast, zoom) without re-exposing the patient to radiation.
5. Improved Patient Experience
Patients are impressed with instant digital images. It also helps them understand their condition better when shown a clear image on the screen.
Benefits of Using RVG in Dental Clinics
Here are some key benefits of using RVG in your dental clinic:
1. Quick Image Capture
RVG provides instant digital X-ray images on the computer screen within seconds. You won’t have to wait for the film to develop.
2. Better Image Quality
It delivers sharp and detailed images. Dentists can zoom in, adjust brightness, and spot small issues more clearly.
3. Less Radiation
RVG uses much lower radiation than traditional X-rays. This makes it safer for both patients and staff.
4. Easy to Store and Share
The images are saved on a computer, allowing you to easily track patient records, print reports, or email images to other doctors.
5. Patient Comfort
Patients don’t need to bite down on large, uncomfortable film plates. The RVG sensor is smaller and easier to manage.
6. Environment-Friendly
No film, chemicals, or waste materials are used. This makes it a cleaner and greener option.
Best RVG in Dentistry
We have seen numerous uses of technology in the current world. In that case, RVG in
dentistry or digital radiography embraces all the benefits by providing minimal harm to the patient and assistant. The average RVG dental price varies according to different brands. Some of the popular brands are;
- Vatech RVG
- MyRay ZenX Intraoral
- Medix Automatic
- Woodpecker RVG I Sensor, etc.
Buying an RVG in dentistry might be a heavy investment, but the benefits gained over time are valuable. So, are you ready to purchase an RVG right now? Ensure better diagnosis with the best RVG in dentistry.
